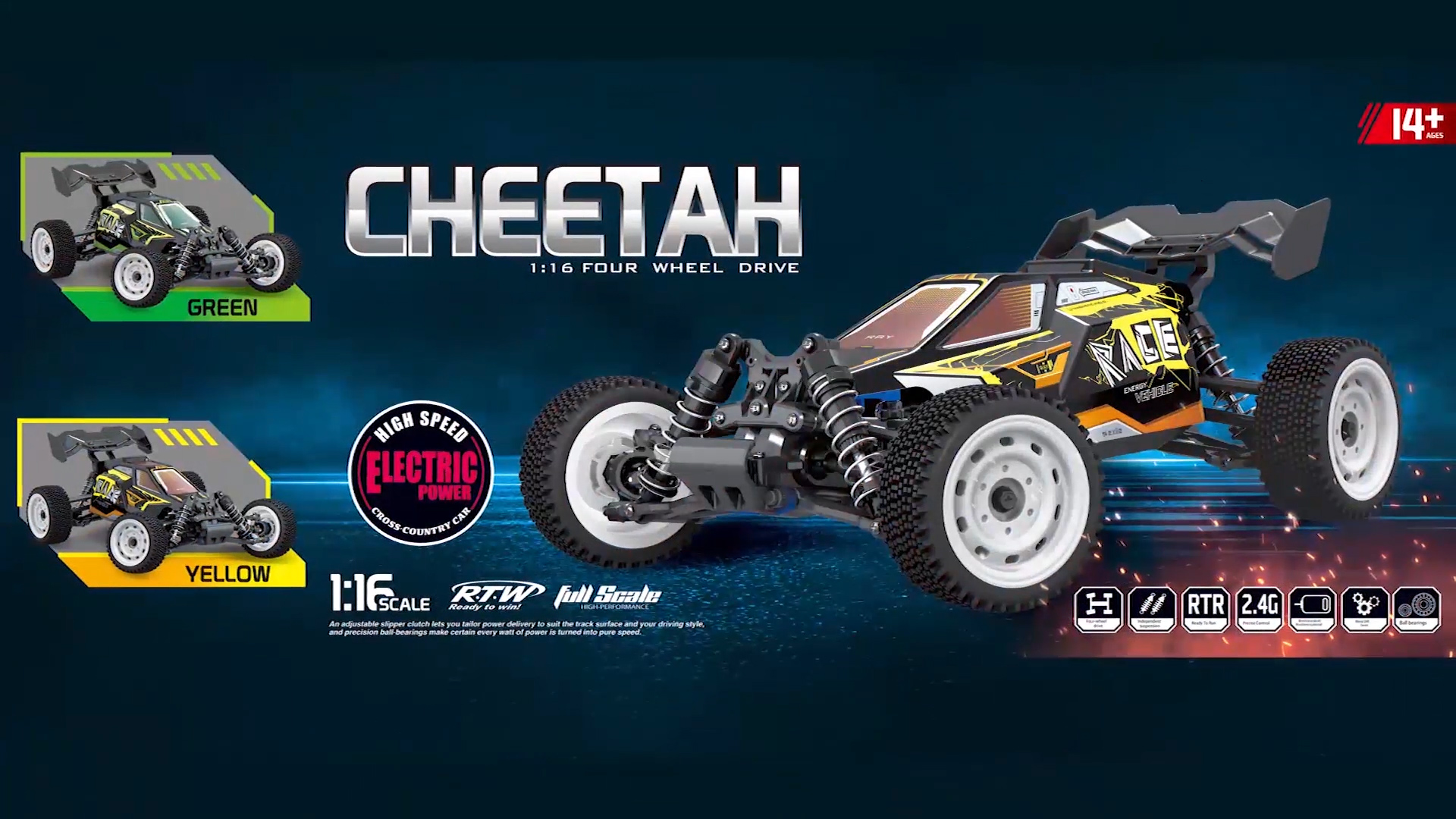

CHEETAH -1:16 4WD full-scale RC buggy

RCP1195630

PAKTAT TOYS & RC EXPERT

1/16 SCALE

Structure: Simulation structure of car design as real car control feeling, to achieve full-scale step-less speed, high-speed driving, rapid acceleration, deceleration, braking, reversing, left turn, and right turn.

✔ 5-wire 17G servo.

✔ The whole car with 16 ball bearings.

✔ Front-wheel cross ball heads universal joint and driveshaft, rear-wheel split dog bone drive shaft.

  ✔ 2.4G splash-proof 4-Channel 30A integrated ESC/receiver.

  ✔ Metal second-floor plate, metal front and rear arm code, metal mid-drive shaft.

80m

Remote control distance

38km/h

Driving speed

18mins

Driving time

CONTACT US FOR FREE SAMPLE !



Other

Configurations

Applicable terrain: flat, sand, mud, grass.

4WD system: Front and rear upright independent of shock absorbers, double-wishbone independent suspension system.

RC: 2.4G full-proportional synchronized remote control system. Full proportional throttle/steering.

Motor: RC 390 high-speed carbon brush and strongly magnetic.

Proportion: Wheelbase: 185mm; Track: 172mm; Wheel DIA: 70mm

Lights: Equipped with LED headlights (3 modes: constant light, slow flash, fast flash)

Car shell: adopts high toughness explosion-proof PVC.

Wheels: Strong grip off-road tires and head-up tail wheel.

Automatic protection: 1. Charging; 2. Motor stuck overloaded work; 3. High temperature; 4. Low voltage;

SPECIFICATIONS

Swipe left to view the complete form when you used mobile

Item:

CHEETAH -1:16 4WD full-scale RC buggy

Color:

Yellow/Green

Car Size:

28.3✖20.2✖11.5cm

Car Weight:

810g

Packing Size:

28.5✖14.4✖22cm

CTY/CTN:

8 PCS

Carton Size:

61✖29.5✖46cm

Car Battery:

7.4V, 18650-1300mAh Li-ion battery (T plug);

Running Time:

≥18mins

Remote Control Battery:

3*1.5V AA

Remote Control Distance(m):

≥80m

Charging Time:

3.5h

Charging Equipment:

USB*1;

G.W/N.W

12.2/11.2kg

Test Report:

RED、FCC、EMC、EN71、BS EN71、10P、PAHS、CD、EN62115、EN60825、ASTM、HR4040、CA65、CPC、CCPSA

Accessories:

Car*1, Tail*1; Remote Control*1, Battery*1, USB*1, manual*1, DIY sticker*2, Spring adjusting ring*1, Metal latch*1, Small screwdriver*1;
